ISD1820 Class Reference

API support for the ISD1820-based Grove Voice Recorder. More...

Detailed Description

• ID: isd1820
• Name: Grove Recorder
• Other Names: ISD1820 Recorder
• Category: sound
• Manufacturer: seeed
• Connection: gpio

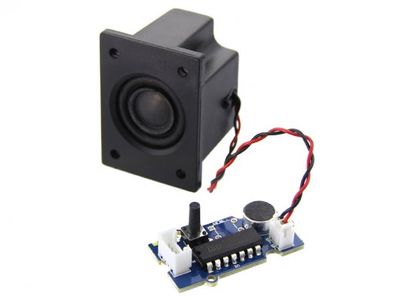

This class implements support for the Grove Voice Recorder. There are two digital pins: one that enables recording, and the other that plays back what was previously recorded.

Public Member Functions
synchronized void	delete ()
	ISD1820 (int playPin, int recPin)
void	play (boolean enable)
void	record (boolean enable)

Constructor & Destructor Documentation

ISD1820	(	int	playPin,
		int	recPin
	)

ISD1820 constructor

Parameters

recPin	Pin to use for recording
playPin	Pin to use for playback

Member Function Documentation

void play

(

boolean

enable

)

Starts or stops playback

Parameters

enable

Starts playback if true, stops if false

void record

(

boolean

enable

)

Starts or stops recording

Parameters

enable

Starts recording if true, stops if false

---

The documentation for this class was generated from the following file:

• /var/lib/jenkins/workspace/upm-doc-stable/build-33/src/isd1820/ISD1820.java
