LDT0028 Class Reference

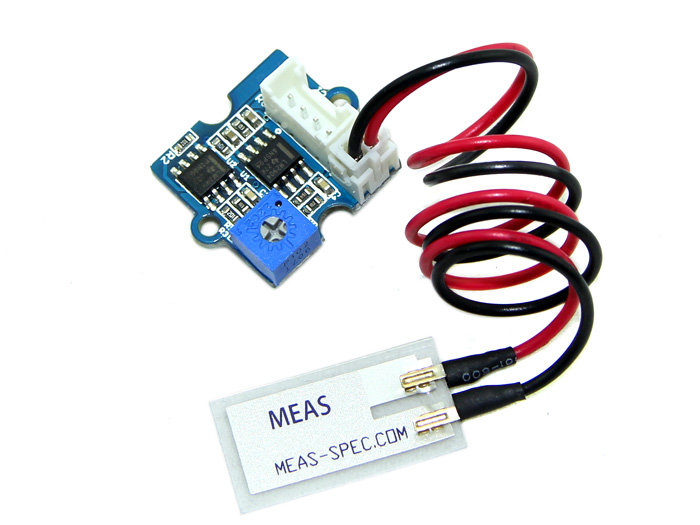

API for LDT0-028 PZT film-based sensors, such as a Grove Piezo Vibration sensor. More...

Detailed Description

• ID: ldt0028
• Name: LDT0-028 Piezo Vibration Sensor
• Other Names: Grove Piezo Vibration Sensor
• Category: flexfor
• Manufacturer: seeed
• Connection: analog

This module defines the LDT0-028 interface for libupm-ldt0028

        // Create the LDT0-028 Piezo Vibration Sensor object using AIO pin 0
        upm_ldt0028.LDT0028 sensor = new upm_ldt0028.LDT0028(0);

        System.out.println("Sensor name: " + sensor.name());

        while (true) {
            System.out.println("Sample value: " + sensor.getSample());
            Thread.sleep(1000);
        }

Public Member Functions
synchronized void	delete ()
	LDT0028 (long pin)
String	name ()
int	getSample ()

Constructor & Destructor Documentation

LDT0028

(

long

pin

)

LDT0028 constructor

Parameters

pin	AIO pin where the sensor is connected

Member Function Documentation

int getSample

(

)

Returns one sample from this sensor

Returns

One value from this sensor

String name

(

)

Returns the name of this sensor

Returns

Name of this sensor

---

The documentation for this class was generated from the following file:

• /var/lib/jenkins/workspace/upm-doc-stable/build-33/src/ldt0028/LDT0028.java
