LPD8806 Class Reference

API for the LPD8806 RGB LED Strip Controller. More...

Detailed Description

• ID: lpd8806

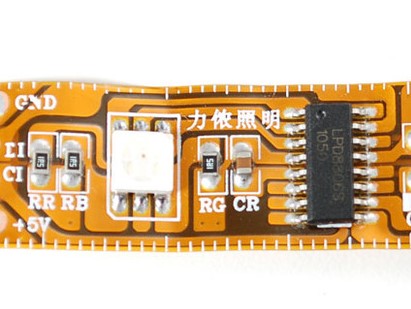

• Name: LPD8806 RGB LED Strip Controller
• Category: led
• Manufacturer: adafruit
• Connection: spi

FastPixel* LPD8806 is an RGB LED strip controller.

Public Member Functions
synchronized void	delete ()
	LPD8806 (int pixelCount, short csn)
void	setPixelColor (int pixelOffset, short r, short g, short b)
void	show ()
int	getStripLength ()
String	name ()

Constructor & Destructor Documentation

LPD8806	(	int	pixelCount,
		short	csn
	)

Instantiates an LPD8806 object

Parameters

pixelCount	Number of pixels in the strip
csn	Chip select pin

Member Function Documentation

String name

(

)

Returns the name of the component

void setPixelColor	(	int	pixelOffset,
		short	r,
		short	g,
		short	b
	)

Parameters

pixelOffset	Pixel offset in the strip of the pixel
r	Red LED
g	Green LED
b	Blue LED

---

The documentation for this class was generated from the following file:

• /var/lib/jenkins/workspace/upm-doc-stable/build-33/src/lpd8806/LPD8806.java
