LSM303 Class Reference

API for the LSM303 Accelerometer & Compass. More...

Detailed Description

• ID: lsm303
• Name: LSM303 Accelerometer & Compass
• Other Names: Grove 6-Axis Accelerometer & Compass
• Category: accelerometer compass
• Manufacturer: seeed adafruit
• Link: http://www.seeedstudio.com/wiki/Grove_-_6-Axis_Accelerometer%26Compass
• Connection: i2c

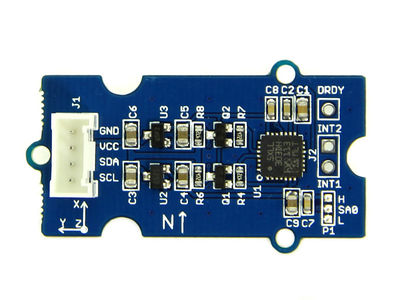

This module defines the LSM303DLH 3-axis magnetometer/3-axis accelerometer. This module was tested with the Seeed Studio* Grove 6-Axis Accelerometer & Compass module used over I2C. The magnometer and acceleromter are accessed at two seperate I2C addresses.

        // Instantiate LSM303 compass on I2C
        upm_lsm303.LSM303 sensor = new upm_lsm303.LSM303(0);

        // Get the coordinate data
        sensor.getCoordinates();
        short[] coor = sensor.getRawCoorData(); // in XYZ order.·
        // The sensor returns XZY, but the driver compensates and makes it XYZ

        // Print out the X, Y, and Z coordinate data using two different methods
        System.out.println("coor: rX " + coor[0] + " - rY " + coor[1] + " - rZ " + coor[2]);
        System.out.println("coor: gX " + sensor.getCoorX() + " - gY " + sensor.getCoorY()
                + " - gZ " + sensor.getCoorZ());

        // Get and print out the heading
        System.out.println("heading: " + sensor.getHeading());

        // Get the acceleration
        sensor.getAcceleration();
        short[] accel = sensor.getRawAccelData();

        // Print out the X, Y, and Z acceleration data using two different
        // methods
        System.out.println("acc: rX " + accel[0] + " - rY " + accel[1] + " - rZ " + accel[2]);
        System.out.println("acc: gX " + sensor.getAccelX() + " - gY " + sensor.getAccelY()
                + " - gZ " + sensor.getAccelZ());

Public Member Functions
synchronized void	delete ()
	LSM303 (int bus, int addrMag, int addrAcc, int accScale)
	LSM303 (int bus, int addrMag, int addrAcc)
	LSM303 (int bus, int addrMag)
	LSM303 (int bus)
float	getHeading ()
int	getCoordinates ()
int	getAcceleration ()
short[]	getRawCoorData ()
short	getCoorX ()
short	getCoorY ()
short	getCoorZ ()
short[]	getRawAccelData ()
short	getAccelX ()
short	getAccelY ()
short	getAccelZ ()

Constructor & Destructor Documentation

LSM303	(	int	bus,
		int	addrMag,
		int	addrAcc,
		int	accScale
	)

Instantiates an LSM303 object

Parameters

i2c	bus
addr	Magnetometer
addr	Accelerometer

Member Function Documentation

int getAcceleration

(

)

Gets accelerometer values Should be called before other "get" functions for acceleration

short getAccelX

(

)

Gets the X component of the acceleration data

short getAccelY

(

)

Gets the Y component of the acceleration data

short getAccelZ

(

)

Gets the Z component of the acceleration data

int getCoordinates

(

)

Gets the coordinates in the XYZ order

short getCoorX

(

)

Gets the X component of the coordinates data

short getCoorY

(

)

Gets the Y component of the coordinates data

short getCoorZ

(

)

Gets the Z component of the coordinates data

float getHeading

(

)

LSM303 object destructor where is no more need for this here - I2c connection will be stopped automatically when m_i2c variable will go out of scope ~LSM303 (); Gets the current heading; headings <0 indicate an error has occurred

Returns

float

short [] getRawAccelData

(

)

Gets raw accelerometer data; it is updated when getAcceleration() is called

short [] getRawCoorData

(

)

Gets raw coordinate data; it is updated when getCoordinates() is called

---

The documentation for this class was generated from the following file:

• /var/lib/jenkins/workspace/upm-doc-stable/build-33/src/lsm303/LSM303.java
