MCP9808 Class Reference

API for MCP9808 precision temprature sensor. More...

Detailed Description

• ID: MCP9808
• Name: MCP9808 Temperature Sensor
• Category: temp
• Manufacturer: adafruit
• Connection: i2c
• Link: https://learn.adafruit.com/adafruit-mcp9808-precision-i2c-temperature-sensor-guide/overview
• Link: http://ww1.microchip.com/downloads/en/DeviceDoc/25095A.pdf

The MCP9808 digital temperature sensor converts temperatures between -20°C and +100°C to a digital word with ±0.5°C (max.) accuracy. The MCP9808 comes with user-programmable registers that provide flexibility for temperature sensing applications. The registers allow user-selectable settings such as Shutdown or low-power modes and the specification of temperature Event and Critical output boundaries. When the temperature changes beyond the specified boundary limits, the MCP9808 outputs an Event signal. The user has the option of setting the event output signal polarity as an active-low or active-high comparator output for thermostat operation, or as temperature event interrupt output for microprocessor-based systems. The event output can also be configured as a Critical temperature output.

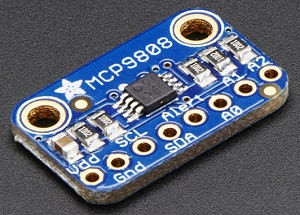

Tested with Adafriut MCP9808 board.

Classes
class	MCP9808_CONFIG
class	MCP9808_REG
class	MCP9808_RESOLUTION

Public Member Functions
synchronized void	delete ()
	MCP9808 (int bus, short address)
	MCP9808 (int bus)
String	name ()
float	getTemp ()
void	shutDown (boolean sleep)
void	shutDown ()
void	setMode (boolean celsius)
void	setMode ()
boolean	isCelsius ()
boolean	isTcrit ()
boolean	isTupper ()
boolean	isTlower ()
void	setMonitorReg (MCP9808.MCP9808_REG reg, float value)
float	getMonitorReg (MCP9808.MCP9808_REG reg)
void	clearInterrupt ()
void	setAlertMode (int command)
void	clearAlertMode ()
void	setHysteresis (MCP9808.MCP9808_CONFIG value)
float	getHysteresis ()
void	setResolution (MCP9808.MCP9808_RESOLUTION value)
float	getResolution ()
int	getManufacturer ()
int	getDevicedId ()

Constructor & Destructor Documentation

MCP9808	(	int	bus,
		short	address
	)

MCP9808 constructor

Parameters

bus	i2c bus the sensor is attached to.
address.	Device address. Default is 0x18.

Member Function Documentation

int getDevicedId

(

)

Returns device ID and revision. Typically 0x0400 With ID in the High byte.

float getHysteresis

(

)

Returns hysteresis setting as a float value.

int getManufacturer

(

)

Returns Manufacturer ID. Typically 0x0054;

float getMonitorReg

(

MCP9808.MCP9808_REG

reg

)

Returns the current value of TCrit, TUpper, TLower registers.

Parameters

reg	- MCP9808_REG enum UPPER_TEMP, LOWER_TEMP or CRIT_TEMP.

float getResolution

(

)

Returns float value representing the current resolution setting.

boolean isTcrit

(

)

Returns true if TCrit threshold has been crossed Reflects the state of the bit based on the most recent readTemp() operation.

boolean isTlower

(

)

Returns true if TLower threshold crossed. Reflects the state of the bit based on the most recent readTemp() operation.

boolean isTupper

(

)

Returns true if TUpper threshold crossed Reflects the state of the bit based on the most recent readTemp() operation.

String name

(

)

Returns the name of the sensor

void setAlertMode

(

int

command

)

Sets alert mode. Can use values from MCP9808_CONFIG enum. Values can be combined.

Parameters

command

- a combination of options to set desired alert mode. See spcec sheet.

void setHysteresis

(

MCP9808.MCP9808_CONFIG

value

)

Sets hysteresis value.

Parameters

MCP9808_CONFIG

enum value HYST_0, HYST_1_5, HYST_3_0 or HYST_6_0

void setMode

(

boolean

celsius

)

setMode - sets temperature reporting mode.

Parameters

celsius.

Default is true. If false all temps will be reported in fahrenhiet.

void setMonitorReg	(	MCP9808.MCP9808_REG	reg,
		float	value
	)

Sets the value of TCrit, TUpper,TLower registers.

reg - MCP9808_REG enum UPPER_TEMP, LOWER_TEMP or CRIT_TEMP.

Parameters

value

- float value representing the set value

void setResolution

(

MCP9808.MCP9808_RESOLUTION

value

)

Sets resolution of temperature conversion.

Parameters

value

- MCP9808_RESOLUTION enum value. RES_LOW = +0.5 C RES_MEDIUM = +0.25 C RES_HIGH = +0.125 C RES_PRECISION = +0.0625 C (default).

void shutDown

(

boolean

sleep

)

Will cause the devices to either sleep or wakeup.

Parameters

sleep

. Bool, default true to sleep. false to wake.

---

The documentation for this class was generated from the following file:

• /var/lib/jenkins/workspace/upm-doc-stable/build-33/src/mcp9808/MCP9808.java
