NRF24L01 Class Reference

API for the NRF24L01 Transceiver Module. More...

Detailed Description

• ID: nrf24l01

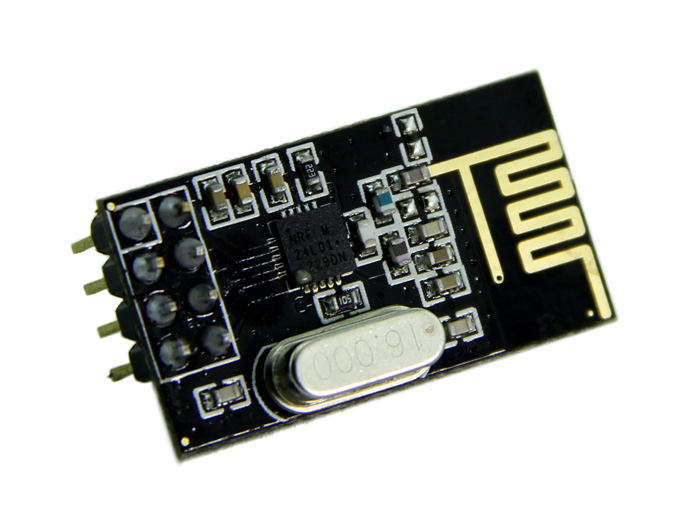

• Name: NRF24L01 Transceiver
• Category: wifi
• Manufacturer: seeed sparkfun
• Link: http://www.seeedstudio.com/depot/nRF24L01Module-p-1394.html
• Connection: spi

id This module defines the NRF24L01 interface for libnrf24l01

        upm_nrf24l01.NRF24L01 comm = new upm_nrf24l01.NRF24L01((short) 7, (short) 8);

        Callback callback = new ReceiverCallback(comm);

        comm.setSourceAddress(local_address);
        comm.setDestinationAddress(broadcast_address);
        comm.setPayload((short) upm_nrf24l01.javaupm_nrf24l01Constants.MAX_BUFFER);
        comm.configure();
        comm.setSpeedRate(upm_nrf24l01.speed_rate_t.NRF_250KBPS);
        comm.setChannel((short) 99);
        comm.setDataReceivedHandler(callback);

        while (true) {
            comm.pollListener();
        }

        upm_nrf24l01.NRF24L01 comm = new upm_nrf24l01.NRF24L01((short) 7, (short) 8);

        Callback callback = new TransmitterCallback();

        comm.setSourceAddress(srcAddress);
        comm.setDestinationAddress(destAddress);
        comm.setPayload((short) upm_nrf24l01.javaupm_nrf24l01Constants.MAX_BUFFER);
        comm.setChannel((short) 99);
        comm.configure();
        comm.setDataReceivedHandler(callback);

        while (true) {
            comm.send(tx_buffer);
            System.out.println("devi2 :: sending data ....");
            for (int i = 0; i < tx_buffer.length; i++)
                System.out.print(tx_buffer[i]);
            System.out.println();
            Thread.sleep(3000);
        }

Public Member Functions
synchronized void	delete ()
	NRF24L01 (short cs, short ce)
String	name ()
void	init (short chipSelect, short chipEnable)
void	configure ()
void	send (byte[] value)
void	send ()
void	setSourceAddress (byte[] addr)
void	setDestinationAddress (byte[] addr)
void	setBroadcastAddress (byte[] addr)
void	setPayload (short load)
void	setDataReceivedHandler (Callback call_obj)
boolean	dataReady ()
boolean	dataSending ()
void	getData (byte[] data)
short	getStatus ()
boolean	rxFifoEmpty ()
void	rxPowerUp ()
void	rxFlushBuffer ()
void	txPowerUp ()
void	powerDown ()
void	setChannel (short channel)
void	setPower (power_t power)
short	setSpeedRate (speed_rate_t rate)
void	txFlushBuffer ()
void	pollListener ()
int	ceHigh ()
int	ceLow ()
int	csOn ()
int	csOff ()
void	setBeaconingMode ()
void	sendBeaconingMsg (byte[] msg)
void	setM_rxBuffer (short[] value)
short[]	getM_rxBuffer ()
void	setM_txBuffer (short[] value)
short[]	getM_txBuffer ()
void	setM_bleBuffer (short[] value)
short[]	getM_bleBuffer ()

Constructor & Destructor Documentation

NRF24L01	(	short	cs,
		short	ce
	)

Instantiates an NRF24l01 object

Parameters

cs	Chip select pin

Member Function Documentation

int ceHigh

(

)

Sets the chip enable pin to HIGH

int ceLow

(

)

Sets the chip enable pin to LOW

void configure

(

)

Configures the NRF24L01 transceiver

int csOff

(

)

Sets the chip select pin to HIGH

int csOn

(

)

Sets the chip select pin to LOW

boolean dataReady

(

)

Checks if the data has arrived

boolean dataSending

(

)

Checks if the transceiver is in the sending mode

void getData

(

byte[]

data

)

Sinks all the arrived data into a provided buffer

Parameters

load	Size of the payload (MAX 32)

short getStatus

(

)

Checks the transceiver state

void init	(	short	chipSelect,
		short	chipEnable
	)

Initializes needed GPIO pins and SPI

Parameters

chipSelect	Sets up the chip select pin
chipEnable	Sets up the chip enable pin

String name

(

)

Returns the name of the component

void pollListener

(

)

Pulling the method listening for the arrived data, dataRecievedHandler is triggered if data arrives

void powerDown

(

)

Powers everything down

boolean rxFifoEmpty

(

)

Checks if the receive stack is empty

void rxFlushBuffer

(

)

Flushes the receive stack

void rxPowerUp

(

)

Powers the receiver up

void send

(

byte[]

value

)

Sends the buffer data

Parameters

*value

Pointer to the buffer

void send

(

)

Sends the data located in an inner bufer; the user must fill the m_txBuffer buffer

void sendBeaconingMsg

(

byte[]

msg

)

Beacons the provided message to BLE scanners.

Parameters

msg	Beacons the provided message (max length is 16 bytes)

void setBeaconingMode

(

)

Configures the NRF24L01 transceiver to behave as a BLE (Bluetooth Low Energy) beaconing devcie.

void setBroadcastAddress

(

byte[]

addr

)

Sets a broadcasting address

Parameters

addr	5-byte address

void setDataReceivedHandler

(

Callback

call_obj

)

Sets the handler to be called when data has been received

Parameters

call_obj

Object used for callback - Java

void setDestinationAddress

(

byte[]

addr

)

Sets a recipient address. The nrfSend method sends the data buffer to this address

Parameters

addr	5-byte address

void setPayload

(

short

load

)

Sets the payload size

Parameters

load	Size of the payload (MAX 32)

void setSourceAddress

(

byte[]

addr

)

Sets a receiving address of the device

Parameters

addr	5-byte address

void txFlushBuffer

(

)

Flushes the transmit stack

void txPowerUp

(

)

Powers the transmitter up

---
