PCA9685 Class Reference

API for the PCA9685 16-channel, 12-bit PWM LED Controller. More...

Detailed Description

• ID: pca9685

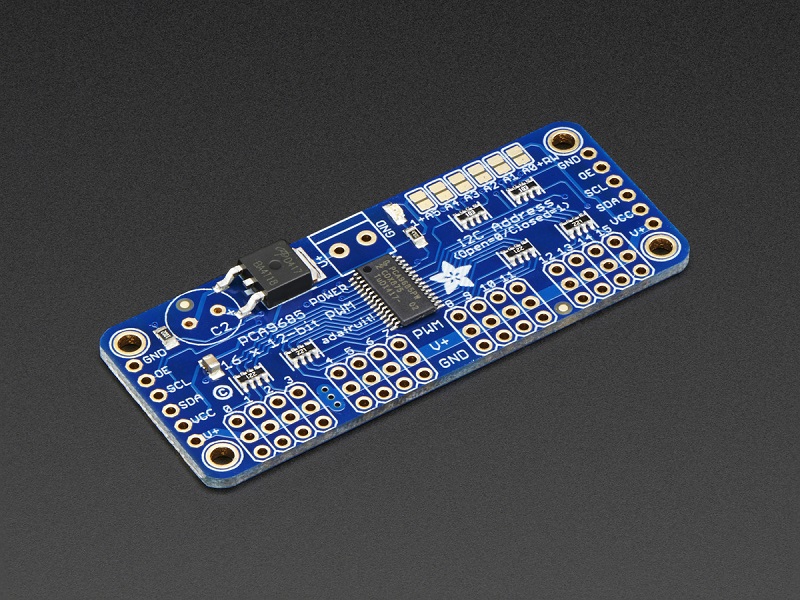

• Name: PCA9685 PWM Controller
• Category: led motor
• Manufacturer: adafruit
• Link: http://www.adafruit.com/products/815
• Connection: i2c

This controller is also used on the Adafruit* Motor Shield v2.3 board to control up to 4 DC motors, 2 stepper motors, and 2 servo motors.

This module was tested with the Adafruit Motor Shield v2.3

Classes
class	PCA9685_MODE1_T
class	PCA9685_MODE2_T
class	PCA9685_REG_T

Public Member Functions
synchronized void	delete ()
	PCA9685 (int bus, short address, boolean raw)
	PCA9685 (int bus, short address)
	PCA9685 (int bus)
boolean	writeByte (short reg, short arg1)
boolean	writeWord (short reg, int word)
short	readByte (short reg)
int	readWord (short reg)
boolean	setModeSleep (boolean sleep)
boolean	ledFullOn (short led, boolean val)
boolean	ledFullOff (short led, boolean val)
boolean	ledOnTime (short led, int time)
boolean	ledOffTime (short led, int time)
boolean	setPrescale (short prescale)
boolean	setPrescaleFromHz (float hz, float oscFreq)
boolean	setPrescaleFromHz (float hz)
void	enableRestart (boolean enabled)

Constructor & Destructor Documentation

PCA9685	(	int	bus,
		short	address,
		boolean	raw
	)

PCA9685 constructor

Parameters

bus	I2C bus to use
address	Address for this device

Member Function Documentation

void enableRestart

(

boolean

enabled

)

Enables or disables the restart capability of the controller

Parameters

enabled

True to enable, false to disable It is enabled by default.

boolean ledFullOff	(	short	led,
		boolean	val
	)

Sets or clears the FULL OFF bit for a given LED. If the FULL ON bit is also set, FULL OFF has precedence.

Parameters

led	LED number; valid values are 0-15, PCA9685_ALL_LED
val	True to set the bit, false to clear it

Returns

True if successful

boolean ledFullOn	(	short	led,
		boolean	val
	)

Sets or clears the FULL ON bit for a given LED

Parameters

led	LED number; valid values are 0-15, PCA9685_ALL_LED
val	True to set the bit, false to clear it

Returns

True if successful

boolean ledOffTime	(	short	led,
		int	time
	)

Sets the 'LED off' time (0-4,095). See the PCA9685 datasheet for details.

Parameters

led	LED number; valid values are 0-15, PCA9685_ALL_LED
time	12-bit value at which point the LED turns off

Returns

True if successful

boolean ledOnTime	(	short	led,
		int	time
	)

Sets the 'LED on' time (0-4,095). See the PCA9685 datasheet for details.

Parameters

led	LED number; valid values are 0-15, PCA9685_ALL_LED
time	12-bit value at which point the LED turns on

Returns

True if successful

short readByte

(

short

reg

)

Reads a byte value from a register

Parameters

reg	Register location to read from

Returns

Value in a specified register

int readWord

(

short

reg

)

Reads a word value from a register. Note: the device must have the auto-increment bit set in the MODE1 register to work.

Parameters

reg	Register location to read from

Returns

Value in a specified register

boolean setModeSleep

(

boolean

sleep

)

Puts the device in or out of the sleep mode. The device is always in the sleep mode upon power-up.

Parameters

sleep

True to put the device in the sleep mode, false to put out

Returns

True if successful

boolean setPrescale

(

short

prescale

)

Sets the prescale value. See the PCA9685 datasheet for details. The prescale can only be set when the device is in the sleep mode.

Parameters

prescale

Prescale value

Returns

True if successful

boolean setPrescaleFromHz	(	float	hz,
		float	oscFreq
	)

Sets the prescale value based on a desired frequency in Hz. The prescale can only be set when the device is in the sleep mode.

Parameters

hz	Desired frequency in Hz
oscFreq	Oscillator frequency; default is 25 MHz

Returns

True if successful

boolean writeByte	(	short	reg,
		short	arg1
	)

Writes a byte value into a register

Parameters

reg	Register location to write into
byte	Byte to write

Returns

True if successful

boolean writeWord	(	short	reg,
		int	word
	)

Writes a word value into a register. Note: the device must have the auto-increment bit set in the MODE1 register to work.

Parameters

reg	Register location to write into
word	Word to write

Returns

True if successful

---

The documentation for this class was generated from the following file:

• /var/lib/jenkins/workspace/upm-doc-stable/build-33/src/pca9685/PCA9685.java
