SM130 Class Reference

API for the SM130 RFID Reader Module. More...

Detailed Description

• ID: sm130
• Name: SM130 RFID Reader
• Category: rfid
• Manufacturer: sparkfun
• Link: https://www.sparkfun.com/products/10126
• Connection: uart gpio

This module defines the SM130 interface for the sm130 RFID library

This module was developed using an SM130 and a Sparkfun RFID Evaluation shield using a UART for communications. It should be fairly trivial to add support for I2C communication in the future, if you have the correct firmware on the SM130.

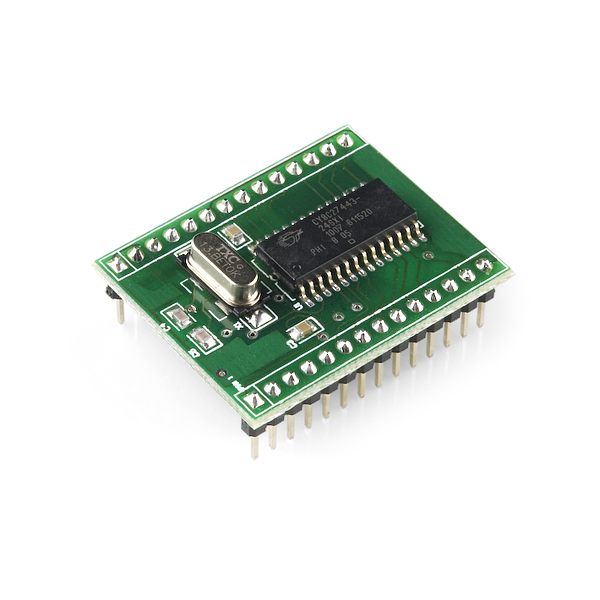

SM130 RFID Reader image provided by SparkFun* under CC BY-NC-SA-3.0.

Classes
class	CMD_T
class	KEY_TYPES_T
class	TAG_TYPE_T

Public Member Functions
synchronized void	delete ()
	SM130 (int uart, int reset)
	SM130 (int uart)
int	setBaudRate (int baud)
int	setBaudRate ()
String	getFirmwareVersion ()
boolean	reset ()
void	hardwareReset ()
boolean	select ()
boolean	waitForTag (long timeout)
boolean	authenticate (short block, SM130.KEY_TYPES_T keyType, String key)
boolean	authenticate (short block, SM130.KEY_TYPES_T keyType)
String	readBlock16 (short block)
int	readValueBlock (short block)
boolean	writeBlock16 (short block, String contents)
boolean	writeValueBlock (short block, int value)
boolean	writeBlock4 (short block, String contents)
boolean	writeKey (short eepromSector, SM130.KEY_TYPES_T keyType, String key)
int	adjustValueBlock (short block, int value, boolean incr)
boolean	setAntennaPower (boolean on)
short	readPorts ()
boolean	writePorts (short val)
boolean	haltTag ()
boolean	setSM130BaudRate (int baud)
boolean	sleep ()
char	getLastErrorCode ()
String	getLastErrorString ()
int	getUIDLen ()
String	getUID ()
SM130.TAG_TYPE_T	getTagType ()
String	tag2String (SM130.TAG_TYPE_T tag)
String	string2HexString (String input)

Constructor & Destructor Documentation

SM130	(	int	uart,
		int	reset
	)

Instantiates an SM130 object

Parameters

uart	The UART port. Default is 0.
reset	The Reset pin. Default is 13.

Member Function Documentation

int adjustValueBlock	(	short	block,
		int	value,
		boolean	incr
	)

Increment or decrement a value block.

Parameters

block	The block to adjust
value	The number to increment or decrement the value block by
incr	true to increment, false to decrement

Returns

The contents of the value block after the operation has completed.

boolean authenticate	(	short	block,
		SM130.KEY_TYPES_T	keyType,
		String	key
	)

Set the authentication key for a block. Depending on the permissions on the tag, the correct key must be authenticated for that block in order to perform read and write operations.

Parameters

block	The block to authenticate for
keyType	one of the KEY_TYPE_T values
key	The 6 byte key to use for Type A and Type B keys

Returns

true if authentication was successful, false otherwise

String getFirmwareVersion

(

)

Gets the firmware version string.

Returns

The firmware revision

char getLastErrorCode

(

)

Get the last error that occurred. After a successful operation, this will be 0. See the datasheet for the various errors that can occur in various circumstances.

Returns

The last error code, or 0 if the last operation succeeded.

String getLastErrorString

(

)

Get the text representation of the last error that occurred. The returned string is empty if the last operation completed successfully.

Returns

The last error string if an error occurred, or an empty string if the last operation succeeded.

SM130.TAG_TYPE_T getTagType

(

)

Get the tag type of the currently selected tag.

Returns

The tag type of the currently selected tag, or TAG_NONE if no tag is currently selected.

String getUID

(

)

Get the UID of the currently selected tag.

Returns

The UID of the currently selected tag, or an empty string if no tag is currently selected.

int getUIDLen

(

)

Get the UID length of the currently selected tag.

Returns

The UID length of the currently selected tag, or 0 if no tag is currently selected.

boolean haltTag

(

)

Halts a tag. Once a tag is halted, it cannot be accessed until it is removed and reinserted into the RF field and selected.

Returns

true if successful, false otherwise

void hardwareReset

(

)

Resets the device using the hardware RESET pin. This is required if the device has been put to sleep using the sleep() method.

String readBlock16

(

short

block

)

Read a 16 byte block. Depending on the tag, authentication of the block may be required for this method to succeed.

Parameters

block

The block to read

Returns

The 16 byte block if successful, an empty string otherwise

short readPorts

(

)

Read the status of the 2 onboard GPIO input pins. Bit 0 is for input 0, bit 1 for input 1. All other bits will be 0.

Returns

bitmask of input port status values

int readValueBlock

(

short

block

)

Read a 4 byte value block. Depending on the tag, authentication of the block may be required for this method to succeed.

Parameters

block

The block to read

Returns

The 4 byte signed integer value block if successful, 0 otherwise

boolean reset

(

)

Issues a reset command to the device.

Returns

true if successful

boolean select

(

)

Checks to see if a tag is in the RF field, and selects it if one is present.

Returns

true if a tag was detected, false if no tag is present or an error was detected.

boolean setAntennaPower

(

boolean

on

)

Turn the antenna power on or off. The power is on by default after a reset. If you turn off the antenna, and methods used for interacting with tags will fail until power is re-enabled.

Parameters

on	true to enable antenna power, false to disable

Returns

true if successful, false otherwise

int setBaudRate

(

int

baud

)

Sets the baud rate for the device. The default is 19200.

Parameters

baud	Desired baud rate, default 19200

Returns

mraa::Result value

boolean setSM130BaudRate

(

int

baud

)

Changes the baud rate of the SM130. WARNING: This is a potentially dangerous command that could cause you to lose contact with the device. Once the command is validated and issued, the host baudrate will be changed to match, and this method will wait for a response at the new baudrate for up to 1 second.

If this response does not arrive, the old baudrate will be restored, though there is no way to know whether the SM130 actually succeessfully executed the baudrate change.

Once the SM130 has changed it's baudrate, the new value will be stored in it's EEPROM, and any further access to the device will need to use the new baudrate. This is true even after a power on reset.

Parameters

baud	The new baud rate to set. Valid values are 9600, 19200, 38400, 57600, and 115200.

Returns

true if successful, false otherwise

boolean sleep

(

)

Put the SM130 to sleep. Once the device has been put to sleep, the only way to wake it is via hardwareReset() or a power cycle.

Returns

true if successful, false otherwise

String string2HexString

(

String

input

)

This is a convenience function that converts a supplied string into a space separated hex formatted string. This can be useful for printing out binary data in a human readable format, like the UID.

Parameters

input

The string to convert

Returns

A string representation of the input in space separated hex values

String tag2String

(

SM130.TAG_TYPE_T

tag

)

Convert the supplied tag type into a human readable string.

Parameters

tag	One of the TAG_TYPE_T values

Returns

A string representation of the supplied tag type

boolean waitForTag

(

long

timeout

)

Waits for a tag to enter the RF field for up to 'timeout' milliseconds. It will call select() every 100ms until 'timeout' has been exceeded.

Parameters

timeout

The number of milliseconds to wait for a tag to appear

Returns

true if a tag was detected, false if no tag was detected within the timeout value, or an error occurred

boolean writeBlock16	(	short	block,
		String	contents
	)

Write 16 bytes to a block. Depending on the tag, authentication of the block may be required for this method to succeed.

Parameters

block	The block to write
contents	A 16 byte string containing the data to write

Returns

true if successful, false otherwise

boolean writeBlock4	(	short	block,
		String	contents
	)

Write 4 bytes to a block. This is typically used for Ultralight tags. Depending on the tag, authentication of the block may be required for this method to succeed.

Parameters

block	The block to write
contents	A 4 byte string containing the data to write

Returns

true if successful, false otherwise

boolean writeKey	(	short	eepromSector,
		SM130.KEY_TYPES_T	keyType,
		String	key
	)

Write a key into one of the 16 EEPROM key slots. This can be a Type A or Type B key. It is not possible to read these keys once written. Once stored, the key can be used for authentication without having to send the key itself. You can then use the appropriate KEY_TYPE_EEPROM_* keyTypes in a call to authenticate().

Parameters

eepromSector	A number between 0 and 15, indicating the EEPROM sector you want to store the key in
keyType	Either KEY_TYPE_A or KEY_TYPE_B
key	The 6 byte key to store in the EEPROM

Returns

true if successful, false otherwise

boolean writePorts

(

short

val

)

Set the output status of the 2 onboard gpio outputs. Bit 0 is for output 0, bit 1 for output 1. All other bits will be discarded.

Parameters

val	bitmask of output status bits to write

Returns

true if successful, false otherwise

boolean writeValueBlock	(	short	block,
		int	value
	)

Write to a 4 byte value block. Depending on the tag, authentication of the block may be required for this method to succeed.

Parameters

block	The block to write
value	the signed 4 byte integer to write to the value block

Returns

true if successful, false otherwise

---
