TH02 Class Reference

API for the TH02 Temperature & Humidity Sensor. More...

Detailed Description

• ID: th02

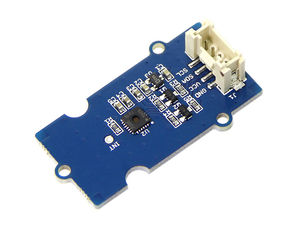

• Name: TH02 Temperature & Humidity Sensor
• Other Names: Grove Temperature & Humidity Sensor (High-Accuracy & Mini)
• Category: temp
• Manufacturer: seeed
• Link: http://www.seeedstudio.com/wiki/Grove_-_Tempture%26Humidity_Sensor_(High-Accuracy_%26Mini)_v1.0
• Connection: i2c

This module defines the TH02 interface for libth02

Note: For use on Intel(R) Edison with an Arduino* breakout board, Intel Edison must be set to 3 V rather than 5 V.

Public Member Functions
synchronized void	delete ()
	TH02 (int bus, short addr)
	TH02 (int bus)
float	getTemperature ()
float	getHumidity ()
boolean	getStatus ()
String	name ()

Constructor & Destructor Documentation

TH02	(	int	bus,
		short	addr
	)

Instantiates a TH02 object

Member Function Documentation

float getHumidity

(

)

Gets the humidity value from the sensor.

boolean getStatus

(

)

Gets the sensor status.

float getTemperature

(

)

Gets the temperature value from the sensor.

String name

(

)

Returns the name of the component

---

The documentation for this class was generated from the following file:

• /var/lib/jenkins/workspace/upm-doc-stable/build-33/src/th02/TH02.java
