TM1637 Class Reference

API for the TM1637 7-Segment Display. More...

Detailed Description

• ID: tm1637
• Name: TM1637 7-Segment Display
• Other Names: Grove 4-Digit Display
• Category: display
• Manufacturer: seeed
• Connection: gpio

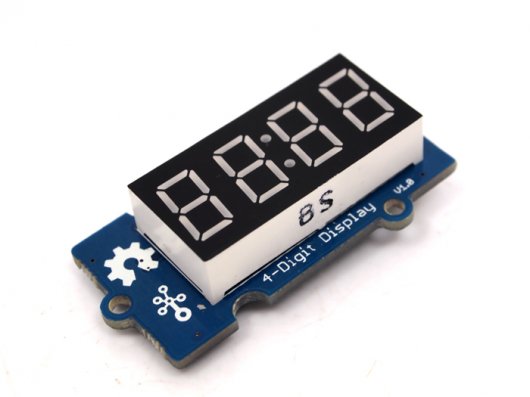

TM1637 is a display controller for LED-based 7-segment displays. It can be used to address and write data to multiple display digits. This driver is based on the Grove version of the TM1637 display that uses 4 digits, thus making it ideal for clock displays, timers, counters, or even score displays in a two-player arcade game.

        // TM1637 on pins 0 (clk) and 1 (dio)
        upm_tm1637.TM1637 myDisplay = new upm_tm1637.TM1637(0, 1);

        // Start a box using 7-segment encoding
        myDisplay.write(0x39, 0x09, 0x09);

        // Finish box using writeAt function
        myDisplay.writeAt(3, ']');

        // Wait 3 seconds
        Thread.sleep(3000);

        LocalDateTime now;
        while (true) {
            now = LocalDateTime.now();
            int hour = now.getHour();
            int min = now.getMinute();
            int sec = now.getSecond();

            System.out.println(hour + ":" + min + ":" + sec);
            myDisplay.writeString(hour + ":" + min);

            Thread.sleep(1000);
        }

Classes
class	M_FAST_GPIO

Public Member Functions
synchronized void	delete ()
	TM1637 (int clk_pin, int dio_pin, int bright, TM1637.M_FAST_GPIO mmio)
	TM1637 (int clk_pin, int dio_pin, int bright)
	TM1637 (int clk_pin, int dio_pin)
int	writeArray (short digits)
int	write (int d, int digit1, int digit2, int digit3, int digit4)
int	write (int d, int digit1, int digit2, int digit3)
int	write (int d, int digit1, int digit2)
int	write (int d, int digit1)
int	write (int d)
int	writeAt (int index, char symbol)
int	writeString (String digits)
void	setColon (boolean value)
void	setBrightness (int value)

Constructor & Destructor Documentation

TM1637	(	int	clk_pin,
		int	dio_pin,
		int	bright,
		TM1637.M_FAST_GPIO	mmio
	)

TM1637 constructor

Parameters

clk_pin	Clock pin the sensor is connected to
dio_pin	Data pin the sensor is connected to
bright	Initial brightness, from 0 (dark) to 7 (bright) (default is 3)
mmio	Fast memory-mapped GPIO writes; default is yes

Member Function Documentation

void setBrightness

(

int

value

)

Controls the brightness of the display

Parameters

value

Brightness, from 0 (darkest) to 7 (brightest)

void setColon

(

boolean

value

)

Toggles the colon between digits on the display

Parameters

value

True to turn the colon on, false to turn it off

int write

(

int

d

)

Writes digits to the display in a 7-segment encoding

Parameters

digits

Array of digits to send to the display

Returns

0 if successful, error code otherwise

int writeAt	(	int	index,
		char	symbol
	)

Writes a symbol (digit or letter) to the display in a specified index

Parameters

index	0-based index of the digit to change from the left
symbol	Digit or letter to display

Returns

0 if successful, error code otherwise

---

The documentation for this class was generated from the following file:

• /var/lib/jenkins/workspace/upm-doc-stable/build-33/src/tm1637/TM1637.java
