TSL2561 Class Reference

API for the TSL2561 Digital Light Sensor. More...

Detailed Description

• ID: tsl2561

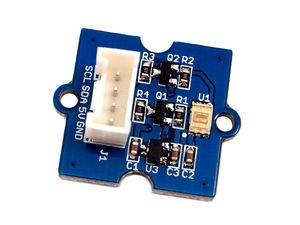

• Name: TSL2561 Light Sensor
• Other Names: Grove Digital Light Sensor
• Category: light
• Manufacturer: seeed
• Link: http://www.seeedstudio.com/wiki/Grove_-_Digital_Light_Sensor
• Connection: i2c
• Kit: eak

TSL2560 and TSL2561 are light-to-digital converters that transform light intensity to a digital signal output capable of a direct I2C (TSL2561) interface

        // Instantiate a TSL2561 Digital Light Sensor on I2C
        upm_tsl2561.TSL2561 sensor = new upm_tsl2561.TSL2561();

        while (true) {
            System.out.println("Lux = " + sensor.getLux());

            Thread.sleep(1000);
        }

Public Member Functions
synchronized void	delete ()
	TSL2561 (int bus, short devAddr, short gain, short integrationTime)
	TSL2561 (int bus, short devAddr, short gain)
	TSL2561 (int bus, short devAddr)
	TSL2561 (int bus)
int	getLux ()

Constructor & Destructor Documentation

TSL2561	(	int	bus,
		short	devAddr,
		short	gain,
		short	integrationTime
	)

Instantiates a TSL2561 object

Parameters

bus	Number of the used bus
devAddr	Address of the used I2C device
gain	Correct gain to use
integration	Time to use

Member Function Documentation

int getLux

(

)

Gets the calculated lux reading from TSL2561

Returns

Calculated lux value from the sensor

---

The documentation for this class was generated from the following file:
