GroveVDiv Class Reference

API for the Grove Voltage Divider Sensor. More...

Detailed Description

• ID: grovevdiv

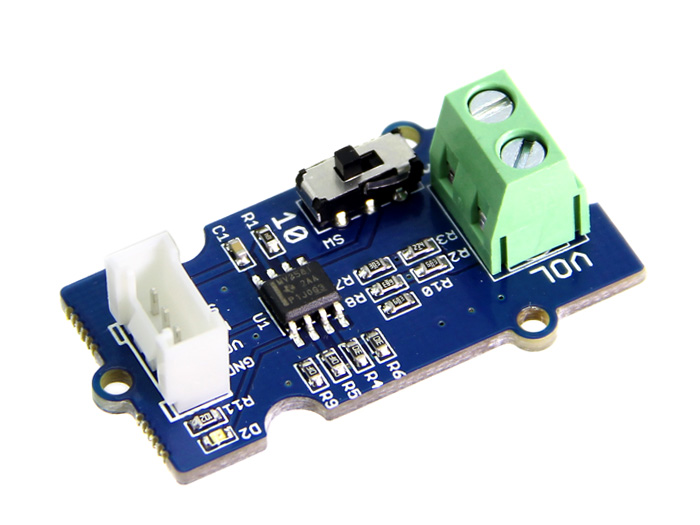

• Name: Grove Voltage Divider
• Category: electric
• Manufacturer: seeed
• Connection: analog
• Kit: robok

  Deprecated:

  This class is being replaced by VDiv

UPM module for the Grove Voltage Divider sensor

  // Instantiate a Grove Voltage Divider sensor on analog pin A0
  upm::GroveVDiv* vDiv = new upm::GroveVDiv(0);

  // collect data and output measured voltage according to the setting
  // of the scaling switch (3 or 10)
  while (shouldRun)
    {
      unsigned int val = vDiv->value(100);
      float gain3val = vDiv->computedValue(3, val);
      float gain10val = vDiv->computedValue(10, val);
      cout << "ADC value: " << val << " Gain 3: " << gain3val
           << "v Gain 10: " << gain10val << "v" << endl;

      sleep(1);
    }

Public Member Functions
	GroveVDiv (int pin)
	~GroveVDiv ()
unsigned int	value (unsigned int samples)
float	computedValue (uint8_t gain, unsigned int val, int vref=GROVEVDIV_VREF, int res=GROVEVDIV_ADC_RES)

Constructor & Destructor Documentation

GroveVDiv

(

int

pin

)

Grove Voltage Divider sensor constructor

Parameters

pin	Analog pin to use

~GroveVDiv

(

)

Grove Voltage Divider destructor

Member Function Documentation

unsigned int value

(

unsigned int

samples

)

Gets the conversion value from the sensor

Parameters

samples

Specifies how many samples to average over

Returns

Average ADC conversion value

float computedValue	(	uint8_t	gain,
		unsigned int	val,
		int	vref = GROVEVDIV_VREF,
		int	res = GROVEVDIV_ADC_RES
	)

Computes the measured voltage

Parameters

gain	Gain switch, either 3 or 10 for Grove
val	Measured voltage (from value())
vref	Reference voltage in millivolts
res	ADC resolution

Returns

Measured voltage

---
