mq303a.h File Reference

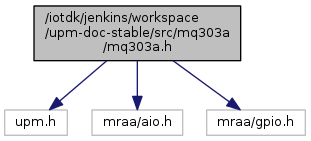

Include dependency graph for mq303a.h:

API Description

Go to the source code of this file.

Data Structures
struct	_mq303a_context

Functions
mq303a_context	mq303a_init (int pin, int heater_pin)
void	mq303a_close (mq303a_context dev)
upm_result_t	mq303a_get_value (mq303a_context dev, int *val)
upm_result_t	mq303a_heater_enable (mq303a_context dev, bool enable)

Typedefs
typedef struct _mq303a_context *	mq303a_context

Function Documentation

mq303a_context mq303a_init	(	int	pin,
		int	heater_pin
	)

MQ303A Initialization function

Parameters

pin	Analog pin to use
heaterPin	Digital pin mapped to the analog pin to use

Returns

void* pointer to the sensor struct

void mq303a_close

(

mq303a_context

dev

)

MQ303A Initialization function

Parameters

void*

pointer to the sensor struct

upm_result_t mq303a_get_value	(	mq303a_context	dev,
		int *	val
	)

This function gets the value of the alcohol content

Parameters

void*	pointer to the sensor struct
*val	pointer to store the reading

Returns

upm_result_t UPM success/error code

upm_result_t mq303a_heater_enable	(	mq303a_context	dev,
		bool	enable
	)

This function enables/disables the heater on board the sensor.

Parameters

void*	pointer to the sensor struct
bool	to turn on/off heater

Returns

upm_result_t UPM success/error code

Typedef Documentation

typedef struct _mq303a_context * mq303a_context

device context
